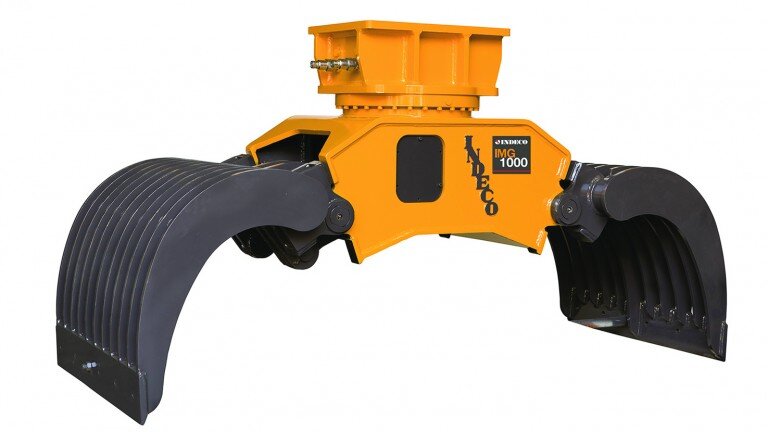

Its exceptional manoeuvrability, its mounting bracket compatible with other Indeco products, the efficiency of its hydraulic system which ensures maximum precision in handling and is cheap to run – just some of the extra qualities that make Indeco IMG jaws such safe and reliable partners.
Excavator weight: 5 ÷ 16 tons
Maximum working pressure:s for cylinder: 1/2”
Maximum rotation pressure: 100 bars
Maximum rotation oil flow: 10 l/min
Hydraulic connections for rotation: 3/8”
Maximum force at blade/teeth: 4000 Kg
Compatibility of attachment plate with breaker: HP 900
SORTING JAWS
Attachment operating weight*: 570 Kg
Maximum opening: 1700 mm
Load capacity: 320 l
Jaw width: 1070 mm
Excavator weight: 5 ÷ 16 tons
Maximum working pressure: 300 bars
Maximum oil delivery: 50 l/min
Hydraulic connections for cylinder: 1/2”
Maximum rotation pressure: 100 bars
Maximum rotation oil flow: 10 l/min
Hydraulic connections for rotation: 3/8”
Maximum force at blade/teeth: 4000 Kg
Compatibility of attachment plate with breaker: HP 900
SORTING JAWS
Attachment operating weight* 570 Kg
Maximum opening: 1700 mm
Load capacity: 320 l
Jaw width: 1070 mm
Excavator weight: 12 ÷ 22 tons
Maximum working pressure: 300 bars
Maximum oil delivery: 70 l/min
Hydraulic connections for cylinder: 3/4”
Maximum rotation pressure: 100 bars
Maximum rotation oil flow: 20 l/min
Hydraulic connections for rotation: 1/2”
Maximum force at blade/teeth: 6000 Kg
Compatibility of attachment plate with breaker: HP 2000 - HP 2500
SORTING JAWS
Attachment operating weight*: 1140 Kg
Maximum opening: 2200 mm
Load capacity: 620 l
Jaw width: 1300 mm
Excavator weight: 17 ÷ 30 tons
Maximum working pressure: 320 bars
Maximum oil delivery: 80 l/min
Hydraulic connections for cylinder 3/4”
Maximum rotation pressure: 110 bars
Maximum rotation oil flow: 20 l/min
Hydraulic connections for rotation: 1/2”
Maximum force at blade/teeth: 7000 Kg
Compatibility of attachment plate with breaker: HP 2000 - HP 2500
Excavator weight: 22 ÷ 40 tons
Maximum working pressure: 350 bars
Maximum oil delivery: 130 l/min
Hydraulic connections for cylinder: 3/4”
Maximum rotation pressure: 110 bars
Maximum rotation oil flow: 30 l/min
Hydraulic connections for rotation: 1/2”
Maximum force at blade/teeth: 10000 Kg
Compatibility of attachment plate with breaker: HP 3000 ÷ HP 4000
Excavator weight: 26 ÷ 50 tons
Maximum working pressure: 350 bars
Maximum oil delivery: 160 l/min
Hydraulic connections for cylinder: 3/4”
Maximum rotation pressure: 110 bars
Maximum rotation oil flow: 30 l/min
Hydraulic connections for rotation: 1/2”
Maximum force at blade/teeth: 12000 Kg
Compatibility of attachment plate with breaker: HP 3000 ÷ HP 4000
Attachment operating weight*: 2930 Kg
Maximum opening: 1840 mm
Jaw width : 1600 mm
Excavator weight: 3 ÷ 10 tons
Maximum working pressure: 300 bars
Maximum oil delivery: 30 l/min
Hydraulic connections for cylinder: 1/2
Maximum rotation pressure: 100 bars
Maximum rotation oil flow: 10 l/min
Hydraulic connections for rotation: 3/8”
Maximum force at blade/teeth: 3000 Kg
Compatibility with breaker: HP 900
SORTING JAWS
Attachment operating weight*: 380 Kg
Maximum opening: 1500 mm
Load capacity: 190 I
Jaw width: 900 mm
