HYDRAULIC BREAKERS
JMS Equipment are the official dealers for Indeco. We have the full range of Hydraulic Breakers in a range of sizes to fit mini diggers right through to large excavators.
Featured
JMS Equipment are the official dealers for Indeco. We have the full range of Hydraulic Breakers in a range of sizes to fit mini diggers right through to large excavators.
Excavator weight: 0,7 ÷ 3 tons
Weight of hammer: 80 / 98 Kg (Heavy Duty)
Steel diameter: 45 mm
Optimal oil supply: 30 ÷ 20 (l/min)
Possible oil: 40 ÷ 15 (l/min)
Optimum pressure: 115 ÷ 120 bar
Possible pressure: 105 ÷ 125 bar
Pressure - excavator: 160 bars
Back pressure max: 11 bars
Energy class per blow: 230 joule
Number of blows per minute: 540 ÷ 2040 n/min
Excavator weight: 1,4 ÷ 5 tons
Weight of hammer: 160 Kg
Steel diameter: 48 mm
Optimal oil supply: 35 ÷ 25 (l/min)
Possible oil: 45 ÷ 25 (l/min)
Optimum pressure: 115 ÷ 120 bar
Possible pressure: 105 ÷ 125 bar
Pressure - excavator: 160 bars
Back pressure max: 11 bars
Energy class per blow: 300 joule
Number of blows p/min: 700 ÷ 1800 n/min
Excavator weight: 1,7 ÷ 6,5 tons
Weight of hammer: 230 Kg
Steel diameter: 65 mm
Optimal oil supply: 45 ÷ 35 (l/min)
Possible oil: 65 ÷ 30 (l/min)
Optimum pressure: 115 ÷ 120 bar
Possible pressure: 105 ÷ 125 bar
Pressure - excavator: 160 bars
Back pressure max: 12 bars
Energy class per blow: 550 joule
Number of blows p/min: 540 ÷ 1670 n/min
Operating Weight: 470-510 lbs 210-230 kg
Carrier Weight Min: 3,750 lbs 1.7 tons
Carrier Weight Max: 14,300 lbs 6.5 tons
Tool Diameter: 2.25 in 56 mm
Pressure Adjusted: 2400 psi 160 bar
Back Pressure Max: 170 psi 12 bar
Impact Frequency: 540-1,540 bpm
Energy Class: 500
HP 600 Hydraulic Breaker
Excavator weight: 3,5 ÷ 10,5 tons
Weight of hammer: 390 Kg
Steel diameter: 75 mm
Optimal oil supply :70 ÷ 60 (l/min)
Possible oil: 80 ÷ 50 (l/min)
Optimum pressure hammer: 120 ÷ 125 bar
Possible pressure: 105 ÷ 130 bar
Pressure adjusted excavator: 170 bars
Back pressure max: 11 bars
Energy class per blow: 850 joule
Number of blows p/min: 600 ÷1340 n/min
HP700 Breaker
Excavator weight: 4 ÷ 12 tons
Weight of hammer: 440 kg
Steel diameter: 80 mm
Optimal oil supply: 80 ÷ 70 (l/min)
Possible oil: 90 ÷ 60 (l/min)
Optimum pressure hammer: 120 ÷ 125 bar
Possible pressure: 105 ÷ 130 bar
Pressure adjusted: 170 bars
Back pressure max: 12 bars
Energy class per blow: 950 joule
Number of blows p/min: 620 ÷ 1500 n/min

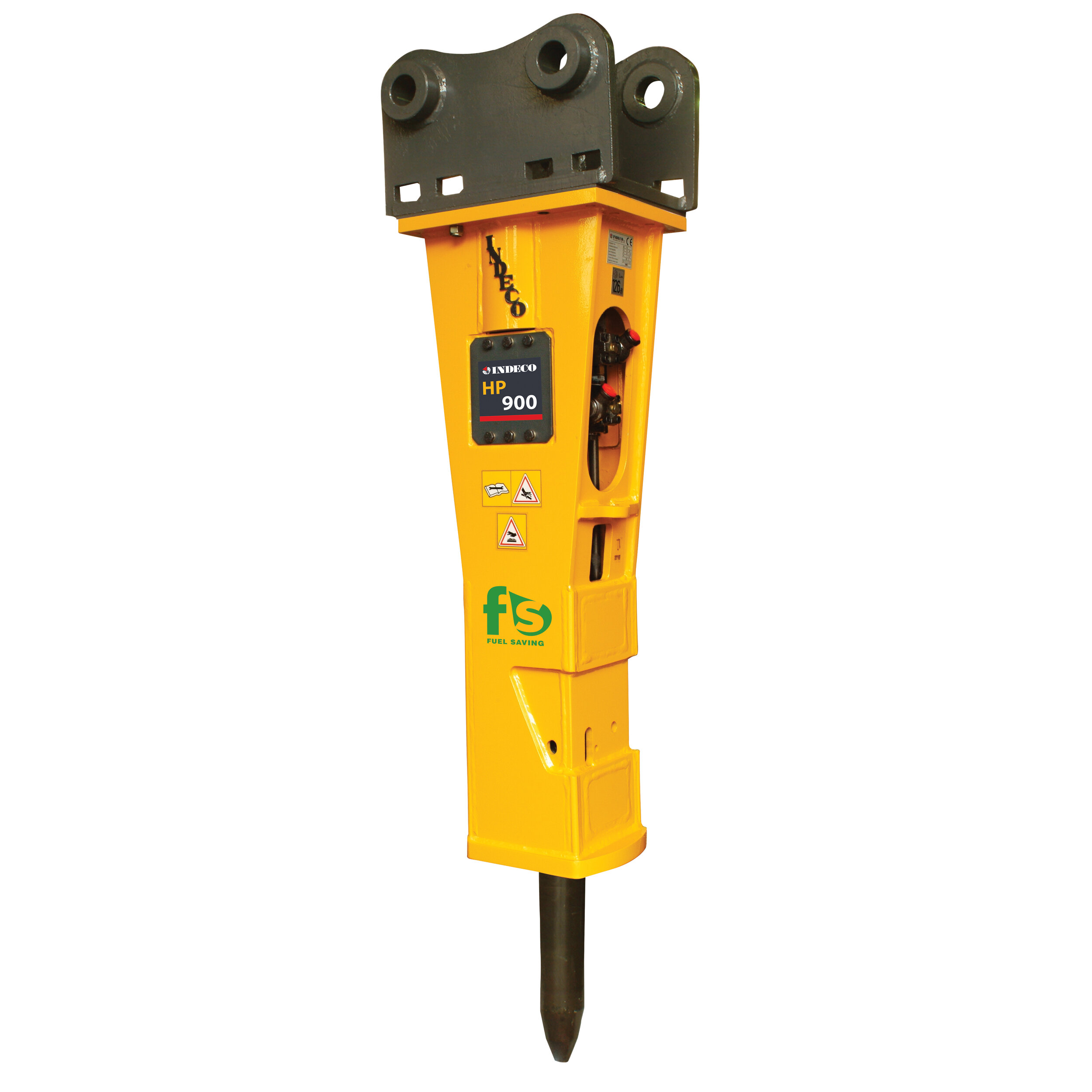

HP 900 Hydraulic Breaker
Excavator weight: 5 ÷ 14 tons
Weight of hammer: 550 kg
Steel diameter: 90 mm
Optimal oil supply: 90 ÷ 80 (l/min)
Possible oil: 100 ÷ 70 (l/min)
Optimum pressure: 120 ÷ 125 bar
Possible pressure: 105 ÷ 130 bar
Pressure - excavator: 170 bars
Back pressure max: 11 bars
Energy class per blow: 1200 joule
Blows per minute: 570 ÷ 1180 n/min
Excavator weight: 10 ÷ 20 tons
Weight of hammer: 850 kg
Steel diameter: 110 mm
Optimal oil supply: 110 ÷ 100 (l/min)
Possible oil: 125 ÷ 80 (l/min)
Optimum pressure: 120 ÷ 125 bar
Possible pressure: 115 ÷ 140 bar
Pressure adjusted: 180 bars
Back pressure max: 10 bars
Energy class per blow: 1750 joule
blows per minute: 420 ÷ 1000 n/min
Excavator weight (possible): 12 ÷ 22 tons
Weight of hammer: 1000 kg
Steel diameter: 115 mm
Optimal oil supply: 120 ÷ 110 (l/min)
Possible oil :130 ÷ 85 (l/min)
Optimum pressure: 120 ÷ 125 bar
Possible pressure: 115 ÷ 140 bar
Pressure adjusted to the excavator: 180 bars
Back pressure max: 8 bars
Energy class per blow: 2000 joule
Blows per minute: 440 ÷ 1060 n/min
Excavator weight: 15 ÷ 25 tons
Weight of hammer: 1200 kg
Steel diameter: 120 mm
Optimal oil supply: 135 ÷ 125 (l/min)
Possible oil: 150 ÷ 110 (l/min)
Optimum pressure: 125 ÷ 130 bar
Possible pressure: 115 ÷ 140 bar
Pressure - excavator: 180 bars
Back pressure max: 8 bars
Energy class per blow: 2500 joule
Blows per minute: 460 ÷ 940 n/min
Excavator weight: 16 ÷ 28 tons
Weight of hammer: 1500 kg
Steel diameter: 130 mm
Optimal oil supply: 140 ÷ 130 (l/min)
Possible oil: 160 ÷ 125 (l/min)
Optimum pressure: 125 ÷ 130 bar
Possible pressure: 115 ÷ 140 bar
Pressure - excavator: 180 bars
Back pressure: max 7 bars
Energy class per blow: 3400 joule
Blows per minute: 400 ÷ 870 n/min
Excavator weight :19 ÷ 32 tons
Weight of hammer: 1900 kg
Steel diameter: 140 mm
Optimal oil supply: 170 ÷ 160 (l/min)
Possible oil: 180 ÷ 145 (l/min)
Optimum pressure adjusted to the hammer: 135 ÷ 140 bar
Possible pressure: 125 ÷ 150 bar
Pressure adjusted to the excavator: 200 bars
Back pressure max: 8 bars
Energy class per blow: 4400 joule
Number of blows per minute: 360 ÷ 870 n/min
Excavator weight: 21 ÷ 38 tons
Weight of hammer: 2200 kg
Steel diameter: 145 mm
Optimal oil supply: 185 ÷ 175 (l/min)
Possible oil: 200 ÷ 160 (l/min)
Optimum pressure hammer: 135 ÷ 140 bar
Possible pressure: 130 ÷ 160 bar
Pressure adjusted excavator: 210 bars
Back pressure max: 7 bars
Energy class per blow: 5200 joule
Blows per minute: 370 ÷ 760 n/min
Excavator weight: 23 ÷ 42 tons
Weight of hammer: 2500 kg
Steel diameter: 150 mm
Optimal oil supply: 215 ÷ 205 (l/min)
Possible oil: 230 ÷ 180 (l/min)
Optimum pressure hammer: 140 ÷ 145 bar
Possible pressure: 130 ÷ 160 bar
Pressure adjusted - excavator: 210 bars
Back pressure max: 8 bars
Energy class per blow: 6200 joule
Blows per minute: 340 ÷ 820 n/min
Excavator weight: 27 ÷ 50 tons
Weight of hammer: 3150 kg
Steel diameter: 160 mm
Optimal oil supply: 230 ÷ 220 (l/min)
Possible oil 265 ÷ 190 (l/min)
Optimum pressure - hammer: 140 ÷ 145 bar
Possible pressure: 130 ÷ 160 bar
Pressure adjusted - excavator: 210 bars
Back pressure max: 7 bars
Energy class per blow: 8000 joule
Blows per minute: 300 ÷ 670 n/min
Excavator weight: 32 ÷ 63 tons
Weight of hammer : 4000 kg
Steel diameter: 180 mm
Optimal oil supply: 285 ÷ 275 (l/min)
Possible oil: 305 ÷ 250 (l/min)
Optimum pressure - hammer: 145 ÷ 150 bar
Possible pressure: 140 ÷ 165 bar
Pressure adjusted- excavator: 210 bars
Back pressure max: 8,5 bars
Energy class per blow: 10500 joule
Blows per minute: 320 ÷ 580 n/min
Excavator weight: 39 ÷ 80 tons
Weight of hammer: 5000 kg
Steel diameter: 195 mm
Optimal oil supply: 325 ÷ 315 (l/min)
Possible oil: 355 ÷ 290 (l/min)
Optimum pressure - hammer: 150 ÷ 155 bar
Possible pressure: 140 ÷ 165 bar
Pressure adjusted - excavator: 210 bars
Back pressure max: 8 bars
Energy class per blow: 15000 joule
Blows per minute: 270 ÷ 540 n/min
Excavator weight: 39 ÷ 80 tons
Weight of hammer: 5000 kg
Steel diameter: 195 mm
Optimal oil supply: 325 ÷ 315 (l/min)
Possible oil: 355 ÷ 290 (l/min)
Optimum pressure - hammer: 150 ÷ 155 bar
Possible pressure: 140 ÷ 165 bar
Pressure adjusted - excavator: 210 bars
Back pressure max: 8 bars
Energy class per blow: 15000 joule
Blows per minute: 270 ÷ 540 n/min
Excavator weight: 60 ÷ 140 tons
Weight of hammer: 11050 kg
Steel diameter: 250 mm
Optimal oil supply: 470 ÷ 460 (l/min)
Possible oil: 520 ÷ 420 (l/min)
Optimum pressure - hammer: 160 ÷ 170 bar
Possible pressure: 140 ÷ 180 bar
Pressure adjusted - excavator: 230 bars
Back pressure max: 11 bars
Energy class per blow: 25000 joule
Blows per minute: 240 ÷ 460 n/min
Excavator weight: 0,5 ÷ 2 tons
Weight of hammer : 59 Kg
Steel diameter: 42 mm
Optimal oil supply: 20 ÷ 15 (l/min)
Possible oil: 28 ÷ 10 (l/min)
Optimum pressure: 115 ÷ 120 bar
Possible pressure: 105 ÷ 125 bar
Pressure - excavator: 160 bars
Back pressure max: 16 bars
Energy class per blow: 160 joule
Number of blows p/min: 400 ÷ 1900 n/min
